UV Light Cure
UV Light Cure Cyanoacrylate Adhesive
Usage
The UV Cure Cyanoacrylate Adhesive (UVCA) Series cures and becomes non-sticky within a few seconds after exposure to low-intensity ultraviolet or visible light sources. Due to the secondary moisture curing mechanism, any UVCA located in areas that are not exposed to light or behind opaque substrates can rapidly cure naturally at room temperature with the original moisture curing mechanism of cyanoacrylate adhesive.
Characteristics
❯MXBON 21441
- Low-viscosity, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure, non-sticky surface
- Dual curing mechanism: light curing + moisture curing
- Ultra-low viscosity; ideal for post-assembly, capillary infiltration adhesion
- Especially suitable for insensitive and low-energy surfaces
- Volume:20g / 500g
❯MXBON 21443
- Low-to-medium viscosity, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure, non-sticky surface
- Dual curing mechanism: light curing + moisture curing
- Easy application for crevice filling and bonding
- Especially suitable for insensitive and low-energy surfaces
- Volume:20g / 500g
❯MXBON 21446
- Medium-viscosity, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure, non-sticky surface
- Dual curing mechanism: light curing + moisture curing
- Suitable for bonding gaps up to 0.15 mm
- Especially suitable for insensitive and low-energy surfaces
- Volume:20g / 500g
❯MXBON 21449
- Gel-like, non-dripping, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure, non-sticky surface
- Dual curing mechanism: light curing + moisture curing
- Suitable for vertical surfaces and large gap filling
- Especially suitable for insensitive and low-energy surfaces
- Volume: 20g

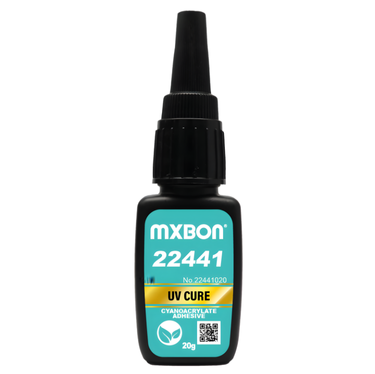

❯MXBON 22441 (Low Odour, Low Blooming)
- Low-viscosity, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure
- Dual curing mechanism: light curing + moisture curing
- Suitable for post-assembly capillary infiltration adhesion
- Volume: 20g / 500g

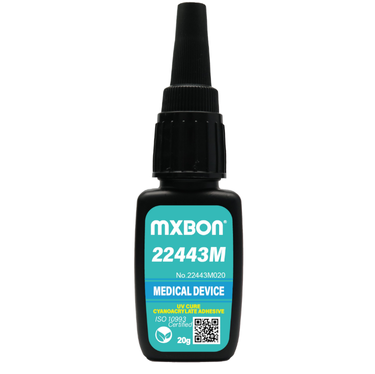

❯MXBON 22443(Low Odor, Low Blooming)
- Low-to-medium viscosity, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure
- Dual curing mechanism: light curing + moisture curing
- Suitable for post-assembly capillary infiltration adhesion
- Volume:20g / 500g

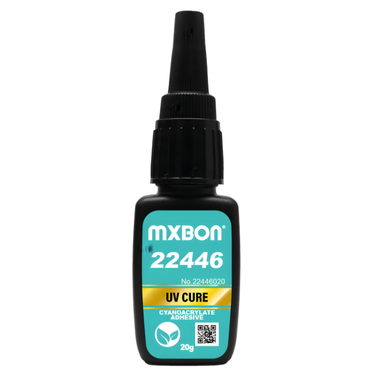

❯MXBON 22446(Low Odor, Low Blooming)
- Medium-viscosity, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure
- Dual curing mechanism: light curing + moisture curing
- Suitable for bonding gaps up to 0.15 mm
- Volume:20g / 500g

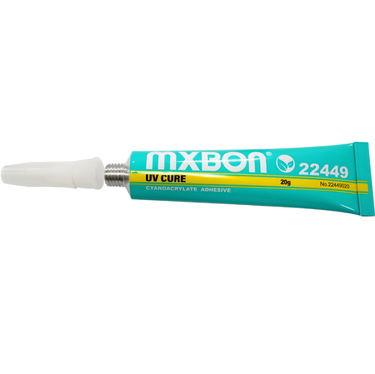

❯MXBON 22449 (Low Odour, Low Blooming)
- Gel-like, non-dripping, light-curing cyanoacrylate adhesive
- Transparent light yellow, instant cure
- Dual curing mechanism: light curing + moisture curing
- Suitable for vertical surfaces and large gap filling
- Volume:20g
Technical Information
| Item No. | Appearance | Viscosity mPa.s | Shear Strength(ABS) | Temperature Range (℃) | Shore D | Fixture time (sec) | ||||
| N/m㎡ (After 10s) | N/m㎡ (After 24h) | ABS | Acrylic | PC | PVC | |||||
| 21441 | Transparent light yellow | 8-20 | 9 | 13 | -54℃-100℃ | D 75 | <15 | <30 | <15 | <150 |
| 21443 | Transparent light yellow | 150-300 | 7 | 13 | -54℃-100℃ | D 82 | <15 | <90 | <40 | <150 |
| 21446 | Transparent light yellow | 600-1,200 | 7 | 13 | -54℃-100℃ | D 83 | <15 | <80 | <40 | <140 |
| 21449 | Transparent light yellow | 30,000-60,000 | 7 | 13 | -54℃-100℃ | D 79 | <15 | <90 | <40 | <150 |
| 22441 | Transparent light yellow | 8-20 | 9 | 13 | -54℃-100℃ | D 75 | <15 | <90 | <40 | <150 |
| 22443 | Transparent light yellow | 150-300 | 7 | 13 | -54℃-100℃ | D 82 | <15 | <90 | <40 | <150 |
| 22446 | Transparent light yellow | 600-1,200 | 7 | 12 | -54℃-100℃ | D 83 | <15 | <80 | <40 | <140 |
| 22449 | Transparent light yellow | 30,000-60,000 | 7 | 13 | -54℃-100℃ | D 79 | <15 | <90 | <40 | <150 |
